2MP HD Global Shutter USB3.0 HDMI Dual Interface Output High Speed Camera Module
Product Description:
This 2MP HD Global Shutter USB3.0 HDMI Dual Interface Output High Speed Camera Module is equipped with a color global shutter sensor, supporting USB3.0 Type-C + HDMI dual-interface output. It can achieve 1080P@120fps full HD high-frame-rate acquisition, and is also compatible with 720P and VGA resolution at 120fps, specially designed for scenarios such as high-speed moving object capture and industrial vision inspection. Its global shutter mechanism can completely eliminate motion blur, distortion and misalignment of high-speed moving objects; paired with multi-format output including MJPG/YUY2, it adapts to different development needs. The UVC plug-and-play architecture enables full-platform direct connection and recognition, greatly shortening the development and debugging cycle. It supports SDK and various development tools, matched with a 1/2.6-inch lens with multiple focal length options, manual/fixed focus dual modes, and a wide operating temperature range of -20℃~70℃. It can be powered by USB 5V or DC 12V, balancing high-speed performance and environmental adaptability, and can stably adapt to various complex industrial scenarios.
Features:
1.Global Shutter No Distortion: Synchronous exposure of all pixels completely eliminates motion blur, distortion and misalignment of high-speed moving objects, ensuring accurate imaging.
2.1080P@120fps High Frame Rate: 120fps acquisition at full HD resolution, fully recording instantaneous dynamics and improving slow-motion analysis accuracy.
3.Dual-Interface Synchronous Output: USB3.0 + HDMI dual interfaces, synchronously supporting high-speed data transmission and real-time large-screen display, enhancing operational convenience.
4.Full-Platform Plug-and-Play: Built-in UVC standard protocol, direct connection and recognition on multiple systems, shortening the driver development and debugging cycle.
Technical Parameters:

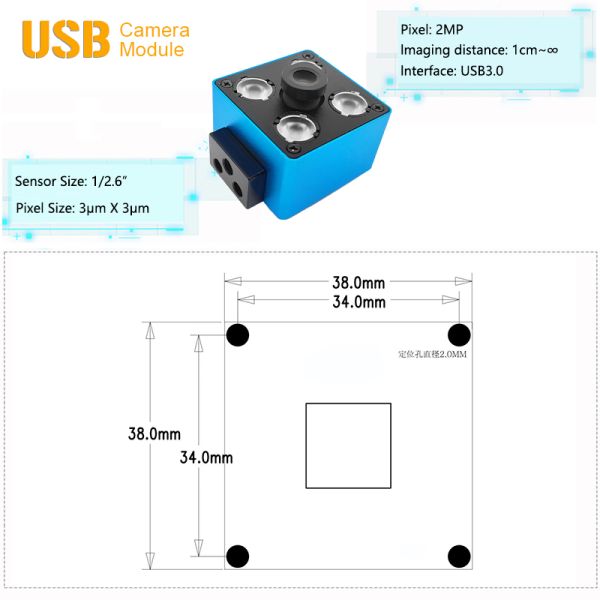

| Module Size |
38mmx38mm |
| Pixel |
2MP |
| Pixel Pitch |
3µm X 3µm |
| Resolution |
1920*1080 |
| Brand |
SincereFirst |
| Sensor Size |
1/2.6inch |
| Operating temperature |
-20°C to 70°C |
| Imaging Range |
1cm-infinity |
| Interface |
USB3.0 High Speed, HDMI |
Applications:
- High-Speed Motion Imaging Recording: Can be used for high-speed physical processes such as mechanical movement and ejection. With its high frame rate and global shutter, it can achieve distortion-free image acquisition and fully restore dynamic details.
- Industrial Automation Vision Inspection: Can be used in high-speed production lines. With its high-speed acquisition and accurate imaging, it can complete positioning, defect identification and other operations, improving detection efficiency and accuracy simultaneously.
- Logistics High-Speed Barcode Scanning: Can be used in logistics assembly lines. With its high-speed and stable imaging, it can quickly read moving barcodes/QR codes and improve assembly line processing speed.
- Intelligent Robot Vision: Can be used in service robots and autonomous driving equipment. With its no motion blur and high stability, it can provide a reliable environmental perception image source.
Customized Service:
We can customize module shape, module head size, lens holder, imaging direction, VCM, lens, firmware, etc.
Why Choose us?
Customized Process:
1. You can provide drawings or samples, as well as request documentation and developed by
our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need to modify, mass production.
